The transition from traditional incandescent and fluorescent lighting to Solid-State Lighting (SSL) has redefined the boundaries of architectural design. No longer relegated to simple “on or off” functionality, light is now treated as a dynamic building material. However, as lighting becomes more integrated into the very fabric of our structures embedded in coves, submerged in water features, or wrapped around curved facades, the technical demands placed on the hardware have reached an all-time high. To achieve professional results, one must look past the superficial brightness and examine the intricate engineering that ensures long-term performance and visual consistency.
The Evolution of Solid-State Lighting
In the early days of LED adoption, the technology was primarily viewed as a decorative novelty or a simple energy-saving alternative. Today, the focus has shifted toward high-fidelity illumination that prioritizes human centricity and structural integrity. The primary challenge for modern engineers is balancing three critical factors: lumen maintenance (how long the light stays bright), heat management (how the system sheds energy), and color fidelity (how accurately colors are rendered). When these factors are ignored, installations suffer from “rainbow effects” where colors shift over time, or premature failure due to thermal stress.
The Anatomy of Consistency
For a large-scale commercial project, such as a hotel facade or a retail showroom, the greatest enemy of the design is color deviation. When multiple reels of light are installed side-by-side, even a slight variation in the Kelvin temperature can ruin the aesthetic. This is why the selection of a professional LED Strip Manufacturer is the most critical decision in the procurement process. High-tier manufacturing relies on a rigorous “binning” strategy. Since semi-conductor wafers naturally produce LEDs with slight variations in output and color, a reputable manufacturer uses precise MacAdam Ellipse tolerances to ensure that every chip on a reel falls within a virtually indistinguishable range of chromaticity.

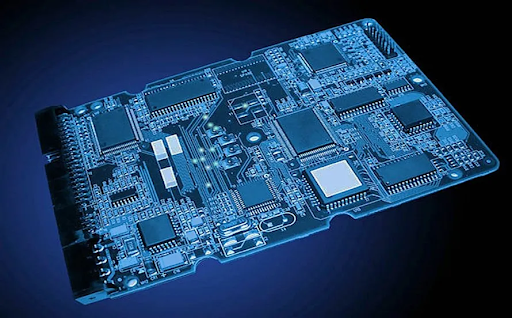

Beyond the chips themselves, the physical substrate the Printed Circuit Board (PCB) serves as the backbone of the system. In high-performance linear lighting, manufacturers utilize double-sided, heavy-weight copper traces. This isn’t just for electrical conductivity; copper is a superior thermal conductor. By pulling heat away from the LED diodes and spreading it across the substrate, the manufacturer prevents the “heat soak” that leads to the rapid degradation of the phosphor coating. This level of substrate engineering is what separates industrial-grade strips from consumer alternatives that often flicker or dim after only a few months of continuous use.
Modular Efficiency: The Logic of Backlighting
While flexible strips are the go-to for linear runs, they are not always the optimal choice for depth-based applications like signage, large lightboxes, or thick architectural channels. In these scenarios, the mechanical requirements change. The light needs to be more rugged, often waterproofed to an IP68 rating, and capable of being spaced out to cover large surface areas without creating “hot spots.” This transition from linear strips to discrete units requires a different supply chain approach.
Navigating these complexities is where the role of a specialized LED module distributor becomes indispensable. Modules offer a level of durability that strips cannot match, often featuring full injection-molded housings that protect the internal circuitry from vibration, humidity, and direct UV exposure. For the technician or designer, the distributor provides the necessary data on beam angles often ranging from 120° to 170°. By utilizing wide-angle secondary optics, these modules can be placed further apart while still providing a perfectly uniform wash of light across a sign face or a fabric tension ceiling. This modular approach also simplifies maintenance; if one section of a large installation is damaged, individual modules can be replaced without stripping out entire meters of interconnected tape.
Optimizing the Ecosystem
The longevity of any LED system is ultimately dictated by the ecosystem it inhabits. This includes the compatibility between the light source and the driver (power supply). A common mistake in the field is underestimating the impact of voltage drop the gradual decrease in voltage as electricity travels along a wire. To combat this, advanced modules and strips are often designed with “constant current” ICs (Integrated Circuits) on board. These tiny components regulate the power locally at each diode, ensuring that the first light in a series is identical in brightness to the last, even over long distances.
Furthermore, as smart buildings become the standard, the control protocol (such as DALI or DMX) must be flicker-free. This is achieved through high-frequency Pulse Width Modulation (PWM). When a system is dimmed, the light actually turns on and off thousands of times per second. If the frequency is too low, it can cause eye strain or “banding” on digital camera feeds. High-end engineering ensures that these cycles happen at speeds imperceptible to both the human eye and high-speed sensors.
Future-Proofing Architectural Designs
As we look toward the future of lighting, the emphasis is moving away from simply “filling a space with light” toward “crafting an environment.” Sustainability in this context does not just mean low wattage; it means creating a system that lasts for a decade rather than a season. By prioritizing technical specifications such as CRI (Color Rendering Index), R9 values for red-tone accuracy, and thermal dissipation rates designers can ensure their vision remains intact long after the initial installation. In the world of professional illumination, the most successful designs are those where the engineering is so robust that the technology itself becomes invisible, leaving behind nothing but a perfect, consistent glow.
